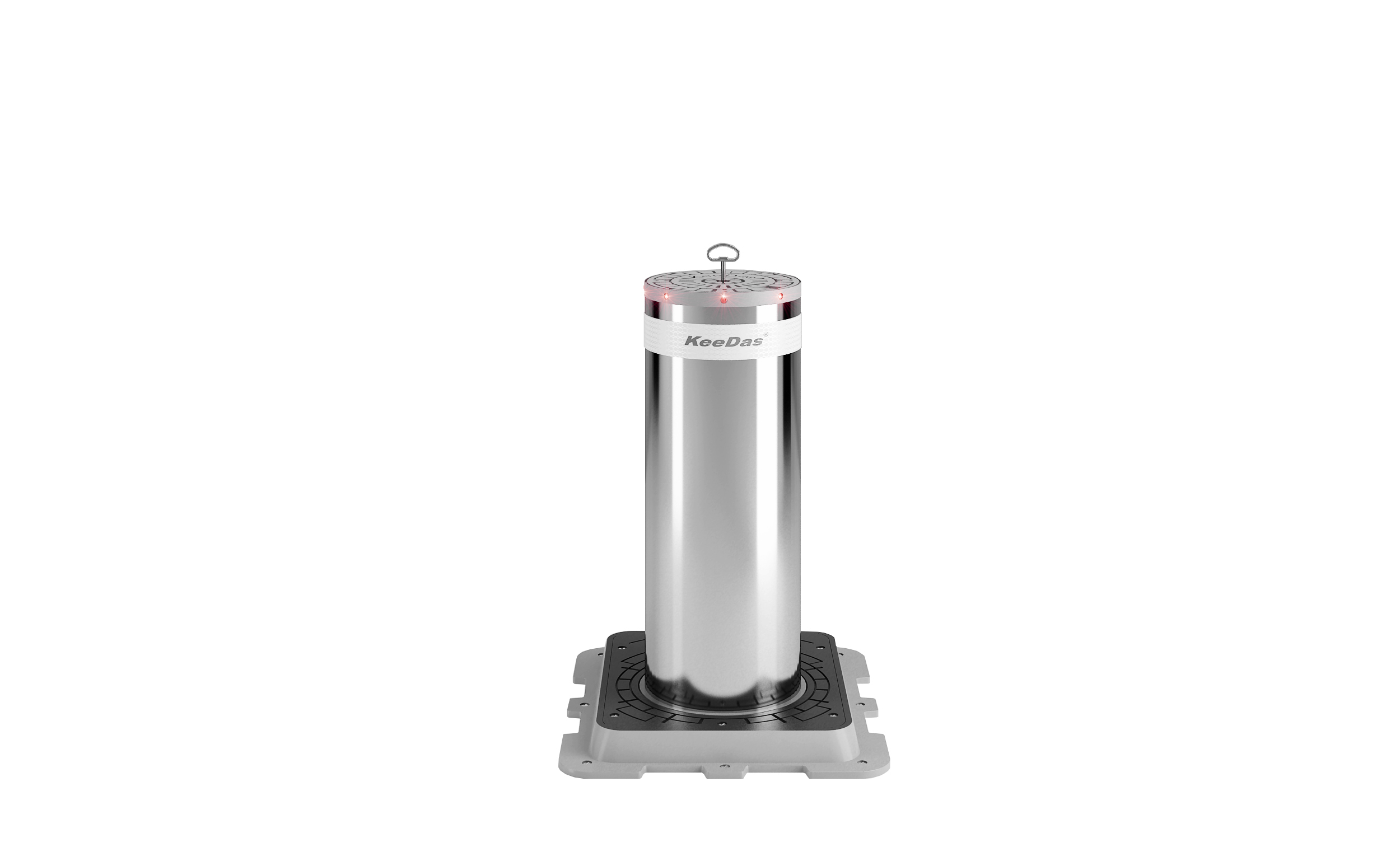

KLM-SE220

The Semiautomatic Bollards are used to define or prevent the stationing or transit of vehicles in a pedestrian or private areas.



Because of the procedure of parking, it is advised that the semi-automatic Bollards be used only if the amount of daily movements is limited (if not, the automatic Bollards should be used).



The whole product combines the experience, skill, and reliable technology from KeeDas( Italian R&D). It is designed for large traffic flow and high-security requirements site’s vehicles access control and it can be widely used in banks, government agencies, research and development centers, nuclear power plants, military bases, sensitive areas, and other places of high-security requirements.
An elegant look & delicate, It is the best choice for high-security vehicle access control solutions.
All series of products have passed the CE certification.



  • The rising of the semiautomatic Bollards comes using the mechanical key that unlocks the restraint, resulting in automatic bollard rise due to the gas-embedded actuator; a high bollard restraint system locks in place, preventing the possibility of lowering to the people without the key.
  • The lowering is carried out through the release of the restraint with the use of the mechanical key and the resulting push to the ground, acting with the foot on the head of the bollard; when the bollard is completely down the restraint system automatically locked, preventing the possibility of it being raised.
  • Choice of optional configurations: FE370 or AISI 304 stainless steel moving cylinders, custom colors, flashing lights integrated into the head, individual mechanical keys.
CYLINDER MATERIAL NORMAL STEEL / AISI 304 STAINLESS STEEL
CYLINDER DIAMETER 220mm
CYLINDER HEIGHT 600mm
CYLINDER THICKNESS 4mm
MOVEMENT PRINCIPLE SEMIAUTOMATIC WITH GAS ACTUATOR
CYLINDER NORMAL STEEL FINISH ANTI-CORROSION TREATMENT – STANDARD PAINTING GREY ANTHRACITE
CYLINDER STAINLESS STEEL FINISH GREY ANTHRACITE STANDARD PAINTING OR BRUSHING
REFLECTING ADHESIVE STRIP STANDARD – HEIGHT 55mm
RISING SPEED 20cm/s
LOWERING SPEED MANUAL (PRESSURE WITH THE FOOT ON THE HEAD OF THE BOLLARD)
CONNECTION LINE FOR FLASHING LIGHT (OPTIONAL) STANDARD 10m (MAX. LENGTH 80m – WITH HEATING RESISTANCE MAX 50m)
IP PROTECTION IP67
IMPACT RESISTANCE (WITHOUT DEFORMATION) 30.000 J
BREAKOUT RESISTANCE 150.000 J
NOMINAL OPERATING TEMPERATURE -40 °C +70 °C(FOR LOW TEMPERATURES SEE THE HEATING RESISTANCE)
LOCK STANDARD: TRIANGULAR LOCK 11mm
